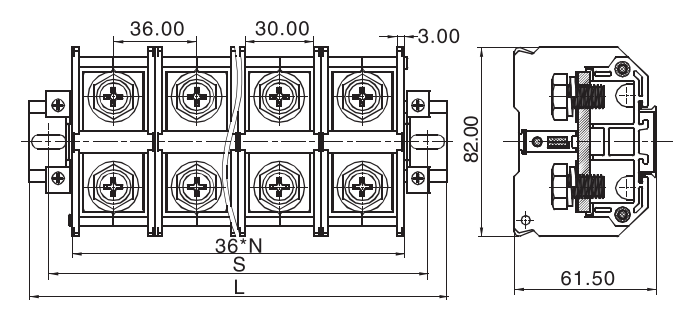

位數 N |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
|
鋁軌長L |
109 |
145 |
181 |
217 |
253 |
289 |
325 |
361 |
397 |
433 |
469 |
505 |
541 |
577 |
613 |
|
|
固定孔距s |
92 |
128 |
164 |
200 |
236 |
272 |
308 |
344 |
380 |
416 |
452 |
488 |
524 |
560 |
596 |
TECHNICAL DATA
|
端子間距(Center Spase) |
36. 0mm |
|
壓線範圍(Wire Range) |
100mm2(Max) |
|
螺釘扭距(Screw Torque) |
60 Ibf. in |
|
額定電流(Rated Current) |
600V,200A |
|
衝擊耐壓(Surge Voltage) |
6000V |
|
絕緣材料(Insulation Body) |
PC,UL94,V-0 |
|
螺釘材質(Screw Material) |
M10,STEEL |
|
端子材質(TerminaI Body) |
BRASS |
|
操作溫度(Temperature) |
-40°C~105°C |
